Tracking

The Shippo Tracking API allows you to track shipments across all carriers with normalized data, full tracking history and real-time updates. When combined with webhooks, you will get push-style notifications anytime a tracking update occurs from the carrier. This powerful combination allows you to always know what the latest tracking information is across all of your shipments and if a recipient may need to take action to retrieve their shipment in a single service.

This tutorial will guide you through the following:

  1. Track live shipments:  get live tracking data via the API.
  2. Event definitions:  get details of all possible Shippo tracking events.
  3. Test mode:  how to test the tracking endpoint.
  4. Track Shippo shipments:  track shipments from labels purchased on the Shippo platform.
  5. Track individual shipments:  track individual shipments without subscribing to webhooks.
  6. Adding metadata:  free form field to add your own data.
  7. Carrier restrictions:  list of carriers with limitations or restrictions explained.
  8. Tracking pages:  setup your own tracking pages with your brand to send to customers

Track live shipments

Let's get started tracking live shipments using the Shippo Tracking API in two easy steps. You can track shipments with Shippo using just a tracking number and the name of the carrier:

  1. Setup a  webhook .
  2. POST the below to  https://api.goshippo.com/tracks/
Copy
Copied
{
    "carrier": "usps",
    "tracking_number": "9102969010383081813033"
}

It's important to know that you must have a webhook registered with us prior to POSTing to the tracking endpoint, because once POSTed, all updates to that tracking number will only be sent to your active tracking webhooks.

You can find a list of all supported carrier tokens here. Also, certain carriers require an account to track shipments sent through them, please see Carrier Restrictions below for details.

You will get a response back that includes the latest tracking status via the corresponding tracking_status field, and the entire history via the tracking_history field, see a sample response below.

Copy
Copied
{
  "carrier": "usps",
  "tracking_number": "9205590164917312751089",
  "address_from": {
    "city": "Las Vegas",
    "state": "NV",
    "zip": "89101",
    "country": "US"
  },
  "address_to": {
    "city": "Spotsylvania",
    "state": "VA",
    "zip": "22551",
    "country": "US"
  },
  "transaction": "1275c67d754f45bf9d6e4d7a3e205314",
  "original_eta": "2016-07-23T00:00:00Z",
  "eta": "2016-07-23T00:00:00Z",
  "servicelevel": {
    "token": "usps_priority",
    "name": "Priority Mail"
  },
  "metadata": null,
  "tracking_status": {
    "object_created": "2016-07-23T20:35:26.129Z",
    "object_updated": "2016-07-23T20:35:26.129Z",
    "object_id": "ce48ff3d52a34e91b77aa98370182624",
    "status": "DELIVERED",
    "status_details": "Your shipment has been delivered at the destination mailbox.",
    "status_date": "2016-07-23T13:03:00Z",
    "location": {
      "city": "Spotsylvania",
      "state": "VA",
      "zip": "22551",
      "country": "US"
    }
  },
  "tracking_history": [
    {
      "object_created": "2016-07-22T14:36:50.943Z",
      "object_id": "265c7a7c23354da5b87b2bf52656c625",
      "status": "TRANSIT",
      "status_details": "Your shipment has been accepted.",
      "status_date": "2016-07-21T15:33:00Z",
      "location": {
        "city": "Las Vegas",
        "state": "NV",
        "zip": "89101",
        "country": "US"
      }
    },
    ...

    {
      "object_created": "2016-07-23T20:35:26.129Z",
      "object_id": "aab1d7c0559d43ccbba4ff8603089e56",
      "status": "DELIVERED",
      "status_details": "Your shipment has been delivered at the destination mailbox.",
      "status_date": "2016-07-23T13:03:00Z",
      "location": {
        "city": "Spotsylvania",
        "state": "VA",
        "zip": "22551",
        "country": "US"
      }
    }
  ]
}

Event definitions

Possible values for status, substatus and corresponding action_required fields are available below. Each field's definition is also available in our API Reference documentation here:

  • PRE_TRANSIT : The label is created but before the package is dropped off or picked up by the carrier.
  • TRANSIT : The package has been scanned by the carrier and is in transit.
  • DELIVERED : The package has been successfully delivered.
  • RETURNED : The package is en route to be returned to the sender, or has been returned successfully.
  • FAILURE : The carrier indicated that there has been an issue with the delivery. This can happen for various reasons and depends on the carrier. This status does not indicate a technical, but a delivery issue.
  • UNKNOWN : The package has not been found via the carrier's tracking system.
Status Substatus Definition Action Required
PRE_TRANSIT information_received Information about the package received.
TRANSIT address_issue Address information is incorrect. Contact carrier to ensure delivery.
TRANSIT contact_carrier Contact the carrier for more information.
TRANSIT delayed Delivery of package is delayed.
TRANSIT delivery_attempted Delivery of package has been attempted. Contact carrier to ensure delivery.
TRANSIT delivery_rescheduled Delivery of package has been rescheduled.
TRANSIT delivery_scheduled Package is scheduled for delivery.
TRANSIT location_inaccessible Delivery location inaccessible to carrier. Contact carrier to ensure delivery.
TRANSIT notice_left Carrier left notice during attempted delivery. Follow carrier instructions on notice.
TRANSIT out_for_delivery Package is out for delivery.
TRANSIT package_accepted Package has been accepted into the carrier network for delivery.
TRANSIT package_arrived Package has arrived at an intermediate location in the carrier network.
TRANSIT package_damaged Package has been damaged. Contact carrier for more details.
TRANSIT package_departed Package has departed from an intermediate location in the carrier network.
TRANSIT package_forwarded Package has been forwarded.
TRANSIT package_held Package held at carrier location. Contact carrier for more details.
TRANSIT package_processed Package has been processed at an intermediate location.
TRANSIT package_processing Package is processing at an intermediate location in the carrier network.
TRANSIT pickup_available Package is available for pickup at carrier location.
TRANSIT reschedule_delivery Contact carrier to reschedule delivery.
DELIVERED delivered Package has been delivered.
RETURNED return_to_sender Package is to be returned to sender.
RETURNED package_unclaimed Package is unclaimed.
FAILURE package_undeliverable Package is not able to be delivered.
FAILURE package_disposed Package has been disposed.
FAILURE package_lost Package has been lost. Contact carrier for more details.
UNKNOWN other Unrecognized carrier status.

Test mode

In our Test environment you are able to review our responses with mock tracking numbers. Using your Shippo Test Token, you simply need to have the carrier set to "shippo" and the tracking number be one of the following, depending on which tracking event you're testing: SHIPPO_PRE_TRANSIT, SHIPPO_TRANSIT, SHIPPO_DELIVERED, SHIPPO_RETURNED, SHIPPO_FAILURE, SHIPPO_UNKNOWN You can see a JSON example below.

jsonjson
Copy
Copied
{
    "carrier": "shippo",
    "tracking_number": "SHIPPO_TRANSIT"
}
Copy
Copied
{
    "messages": [],
    "carrier": "shippo",
    "tracking_number": "SHIPPO_TRANSIT",
    "address_from": {
        "city": "San Francisco",
        "state": "CA",
        "zip": "94103",
        "country": "US"
    },
    "address_to": {
        "city": "Chicago",
        "state": "IL",
        "zip": "60611",
        "country": "US"
    },
    "eta": "2018-08-02T18:49:42.566",
    "original_eta": "2018-08-02T18:49:42.566",
    "servicelevel": {
        "token": "shippo_priority",
        "name": "Priority Mail"
    },
    "metadata": "Shippo test tracking",
    "tracking_status": {
        "object_created": "2018-07-30T18:49:42.586",
        "object_updated": null,
        "object_id": "560f1b9cfe8341a2899e0388f1b9081c",
        "status": "TRANSIT",
        "status_details": "Your shipment has departed from the origin.",
        "status_date": "2018-07-29T16:44:42.586",
        "substatus": null,
        "location": {
            "city": "San Francisco",
            "state": "CA",
            "zip": "94103",
            "country": "US"
        }
    },
    "tracking_history": [
        {
            "object_created": "2018-07-30T18:49:42.589",
            "object_updated": null,
            "object_id": "9a056563ad874a0b9bf79dee321f25f5",
            "status": "UNKNOWN",
            "status_details": "The carrier has received the electronic shipment information.",
            "status_date": "2018-07-28T14:39:42.589",
            "substatus": null,
            "location": {
                "city": "San Francisco",
                "state": "CA",
                "zip": "94103",
                "country": "US"
            }
        },
        {
            "object_created": "2018-07-30T18:49:42.589",
            "object_updated": null,
            "object_id": "82ef073b04ef48368e79b835af788fce",
            "status": "TRANSIT",
            "status_details": "Your shipment has departed from the origin.",
            "status_date": "2018-07-29T16:44:42.589",
            "substatus": null,
            "location": {
                "city": "San Francisco",
                "state": "CA",
                "zip": "94103",
                "country": "US"
            }
        }
    ],
    "transaction": null,
    "test": true
}

To see all possible status, substatus and corresponding action_required values, review our full list above.

Track Shippo shipments

For each production label you purchase, Shippo automatically tracks the shipment status through the corresponding carrier's tracking system.

The latest status is accessible via the corresponding Transaction's tracking_status field.

Here's a sample Transaction object:

Copy
Copied
{
    "object_state": "VALID",
    "status": "SUCCESS",
    "object_created": "2014-11-29T16:31:19.512Z",
    "object_updated": "2014-11-29T16:31:19.512Z",
    "object_id": "5695ae3a5eda41ba9abdbf347fd545f3",
    "object_owner": "test@goshippo.com",
    "test": false,
    "rate": "693ea14a541f44e090291b929c171d5a",
    "tracking_number": "9102969010383081813033",
    "tracking_status": "DELIVERED",
    "eta": "2014-11-24T00:00:00Z",
    "tracking_url_provider": "https:\/\/tools.usps.com\/go\/TrackConfirmAction_input?origTrackNum=9102969010383081813033",
    "label_url": "https:\/\/shippo-delivery-east.s3.amazonaws.com\/5695ae3a5eda41ba9abdbf347fd545f3.pdf?Signature=AyiitLq2g%2F2R9fjboCTVxi5z7JQ%3D&Expires=1534873886&AWSAccessKeyId=AKIAJGLCC5MYLLWIG42A",
    "commercial_invoice_url": null,
    "messages": [],
    "order": "ca760ef0099040b4a2b7feec827bca88",
    "metadata": "",
    "parcel": "e0de043b2f7f4b6d8e6f23ad69641cc1",
    "billing": {"payments": []}
}

Track individual shipments

To submit an individual tracking request for a single shipment, including those created outside of Shippo, you can send a GET request to the Tracking Status endpoint with your shipment carrier and tracking_number.

You can find a list of all supported carrier tokens here.

Here's a sample request.

Copy
Copied
curl https://api.goshippo.com/tracks/usps/9205590164917312751089\
    -H "Authorization: ShippoToken <API_TOKEN>"

The response is similar to the example above.

Adding metadata

You can add metadata to the tracking request through a POST request. This is a free form field where any user-specific information can be added. By making a POST request to add metadata, all your existing webhooks will also be connected to the tracked shipment.

The POST request's body needs to consist of your shipment's tracking_number and carrier:

Copy
Copied
curl https://api.goshippo.com/tracks/\
    -H "Authorization: ShippoToken <API_TOKEN>"\
    -d carrier="usps"\
    -d tracking_number="9205590164917312751089"\
    -d metadata="Order 000123"

Carrier restrictions

Some carriers require that you have an account with them to track shipments being delivered through them. This is only relevant if you are sending your tracking numbers as a POST to get updates via our webhook (where it is required to have a Shippo account). Otherwise, you simply wouldn't be able to track shipments through the below carriers.

To track shipments with the below carriers, you need to add your respective carrier account into your Shippo account:

  • Australia Post
  • Purolator

See Carrier Accounts for details on adding carrier accounts to your Shippo account.

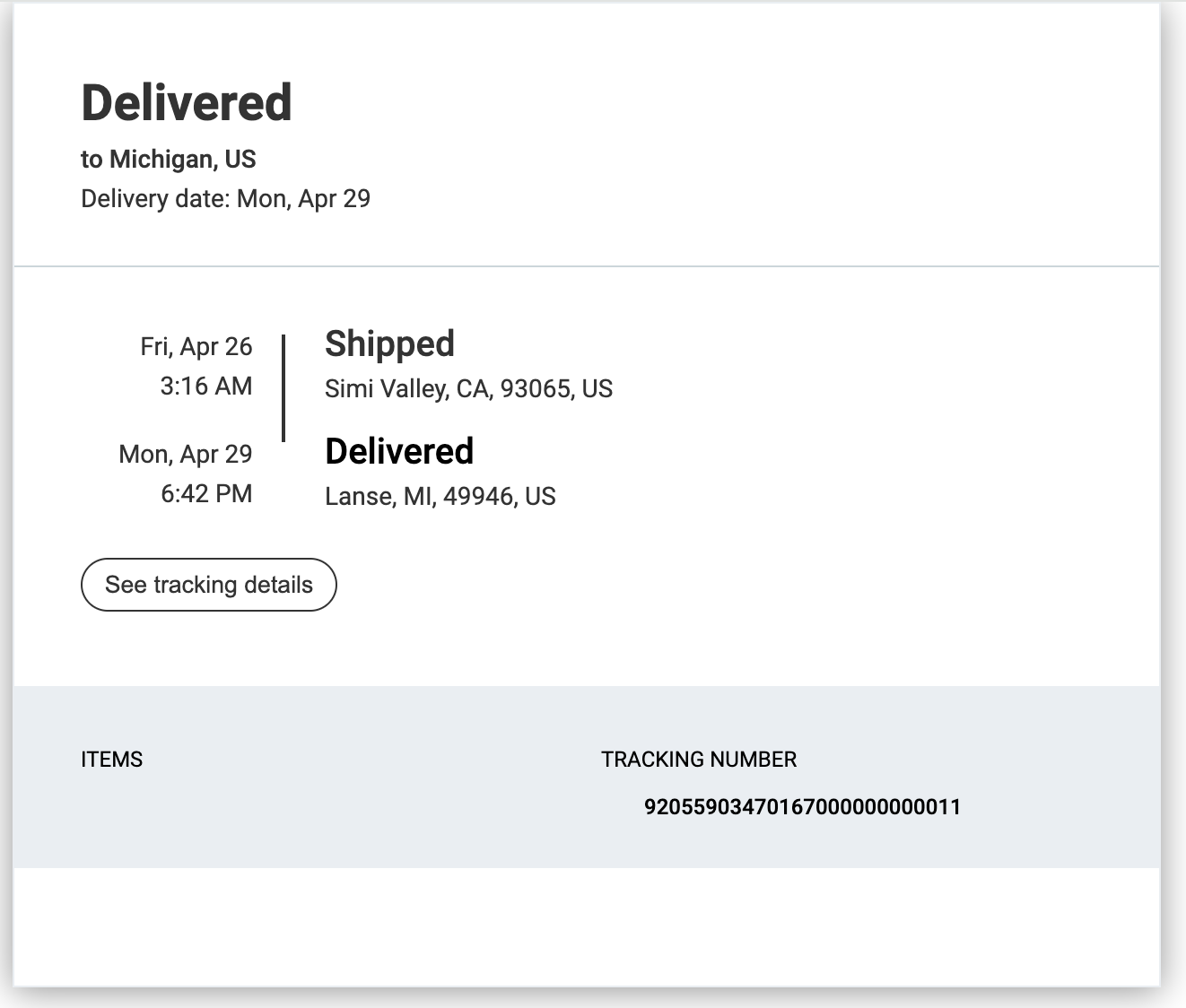

Tracking pages

Tracking pages let retailers share detailed order tracking information through the native look and feel of their own brand. You can brand your own tracking pages within the Shippo App in three easy steps. Contact our sales team to get started, here.

  1. Log in to our App to upload assets to the Branding and Tracking Page tabs
  2. Publish content and retrieve your base URL from the 'See Live Example' link
  3. Send customers to your pages (include this link in your own emails, for example) with the <baseurl>/<carrier>/<trackingnumber>
